Playing with the mosfet a few nights ago was fun, and I'm sure I could squeeze a little more clean gain out of it by a few value tweaks.  I still might come back to it for my Jamtastik! pedal, but something reminded me of a few two-stage jfet preamps I've been meaning to try.  I came across one awhile back in an Instructables post:

http://www.instructables.com/id/Building-JFET-Preamplifiers-for-musical-instrument/?ALLSTEPS

As much as I like the relative warmth of the Fetzer Valve, it pales in comparison to the LPB and TL071 in terms of gain.  For my Jamtastik!, it really just needs some more power.  Here's the Fetzer Valve Revisited as built for my Jamtastik! pedal.

http://www.runoffgroove.com/fetzervalve.html

So, with two stages, the question becomes how much clean gain can I get from it with a 9V power supply?

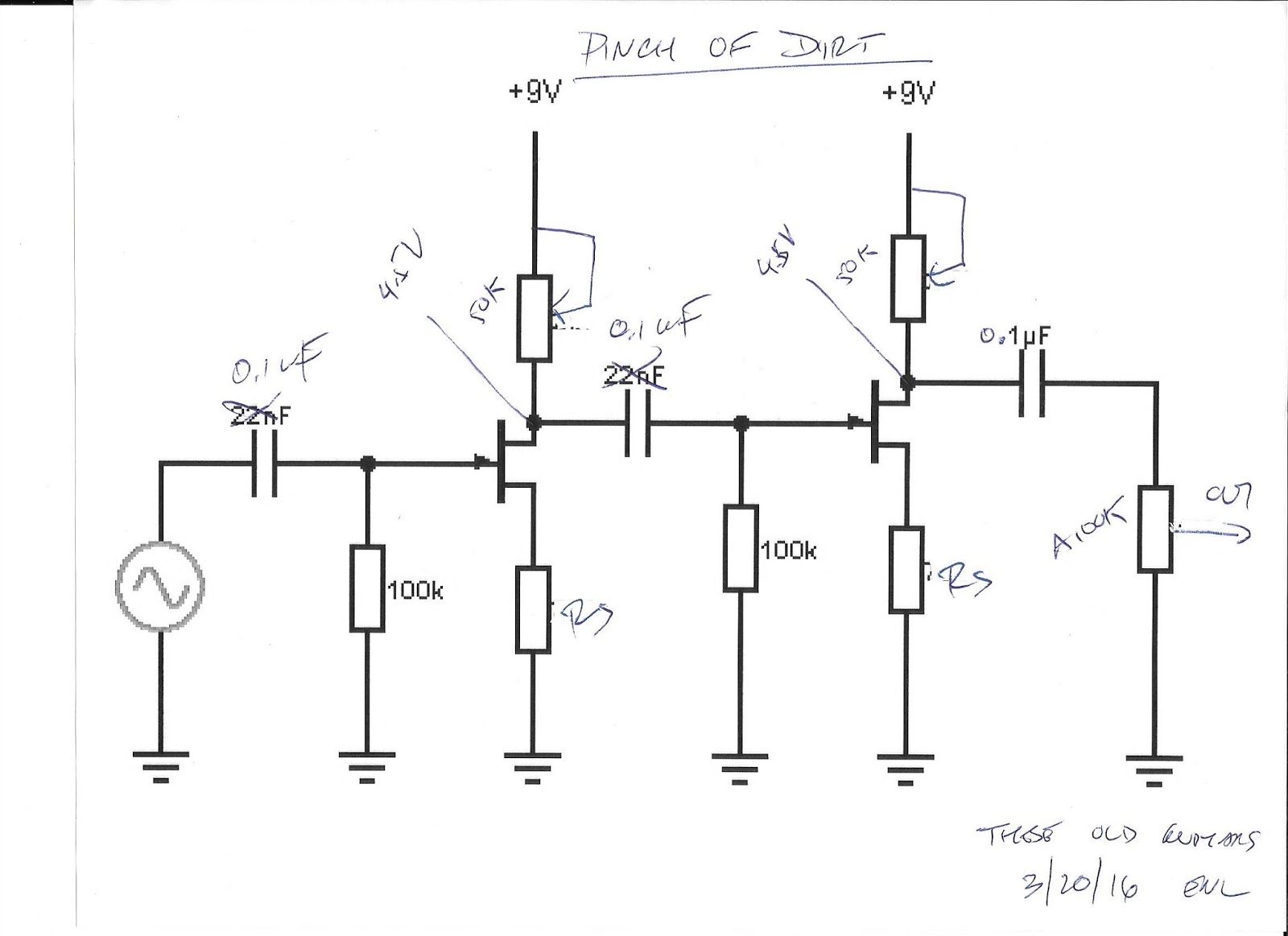

Taking the Instructables circuit and applying some of what I see in the Fetzer Valve Revisited, I swapped out the Rd=2k2 for 50k trim pots.  Lacking 750R and having the wrong style of 2k trim pots for breadboarding, I went with Rs=820R for starters.  Since I'm plugging in a guitar and bass, I also reduced the input and output capacitors to 0.1uF.  And, wanting to have some level control, I added a A100k voltage divider on the output.  After biasing both engines at idle to 4.5V, we have a simple, not totally clean, super low-noise gain monster.  I give you, Pinch of Dirt.

But, and this is a most important but, it cleans up very nicely by turning back the guitar volume and still has plenty of gain!  So, the next step is to add a minimal shunt resistor plus some attenuation on the front with an inline resistor, in front of the first input capacitor, a la the Fetzer Valve revisited.  After I find the sweet spot for that inline resistor, I'll play around with values of Rs to find the limit of how much clean gain and dirt I can get out of this circuit.

LeSpork Bass Prototype - The MOSFET and Me

We both know
What could have been
On Sunset strip
Our broken dream

So, this actually has little to do with Robbie Williams and bears little resemblence to Jack Gantos or The Trouble in Me.  But, my first foray into the world of mosfet devices was a success.  Due to availability of parts on hand, I ended up with a cross between the AMZ and Blue Dragon Mosfet Boosters:

http://www.muzique.com/schem/mosfet.htm

http://www.maxgreco.com/fun/bd.html

Besides reference to Jack Orman's circuit, Max Grego also gives a nod to the Catalinbread Sagrado Poblano Picoso!  As described, it sounds like an interesting bass guitar effect, despite the demo in the following link being done with a guitar on a Super Chili Pocoso build:

http://tagboardeffects.blogspot.com/2013/01/catalinbread-sagrado-poblano-picoso.html

Per comments about the Poblano Picoso, the 2N7000 has a cleaner sound than the BS170, which correlates with the description in Wikipedia of the 2N7000 as a FETlington:

https://en.wikipedia.org/wiki/2N7000

Anyways, my homebrew Mosfet Booster has a 2N7000 mosfet, 2.2K fixed for Rd and Rs, a 10M3 fixed biasing the Gate, a 0.1u output cap, and 2/3 of a 2N2222 acting as a protection diode.  I left off the tone control and simply put a 100k fixed across the output to ground.  The lack of a resistor across input and ground was noticeable when plugging and unplugging, so I'll put something hefty in for controlling the pop next time.  About 5V was the closest I could get to the low end of Jack's suggested bias voltage of 4.5-5.5V at point A=Drain, and Max Greco did not offer any suggestions here other than to leave it to the user to play with the 100k for biasing the beast.  The circuit seemed to sound cleaner when I pushed the voltage at A up to about 8V.  That put Vref at about 2.4V, and it was too late in the day to play loudly enough to tell how clean it really was.  I was using a B5k instead of A5k for a gain pot, and found the 4 o'clock position, about 0.7k, to be the limit before the clean boost started slipping into a somewhat understated but tasty overdrive.  This calls for more experimentation at higher volumes to find reasonable Vref and bias voltage levels, and try it along with a master volume plus tone control with a clean recovery stage.
